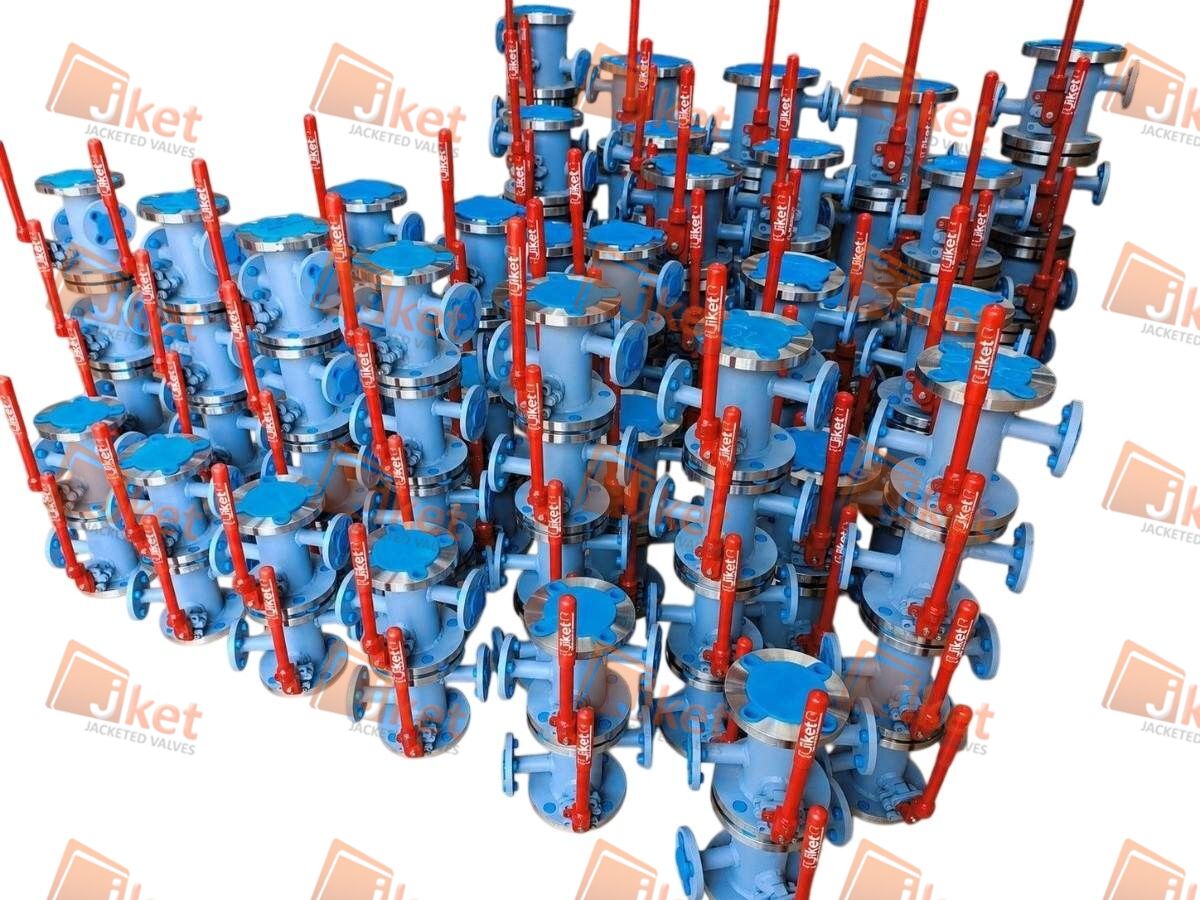

Full Jacketed Ball Valve
Jket® brand Full Jacketed Ball Valves manufacturing and exports by us since 2011.
- Full Jacketed
- 150# / 300#

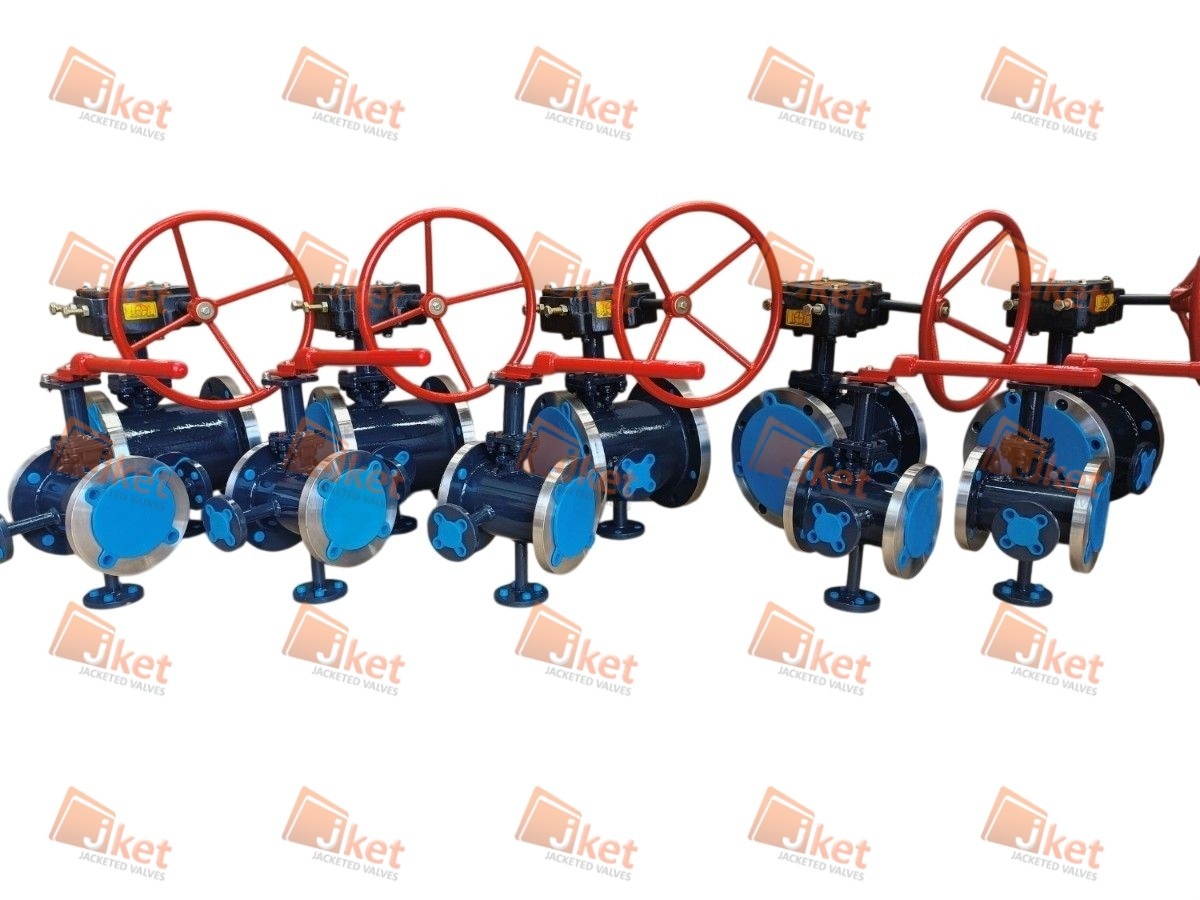

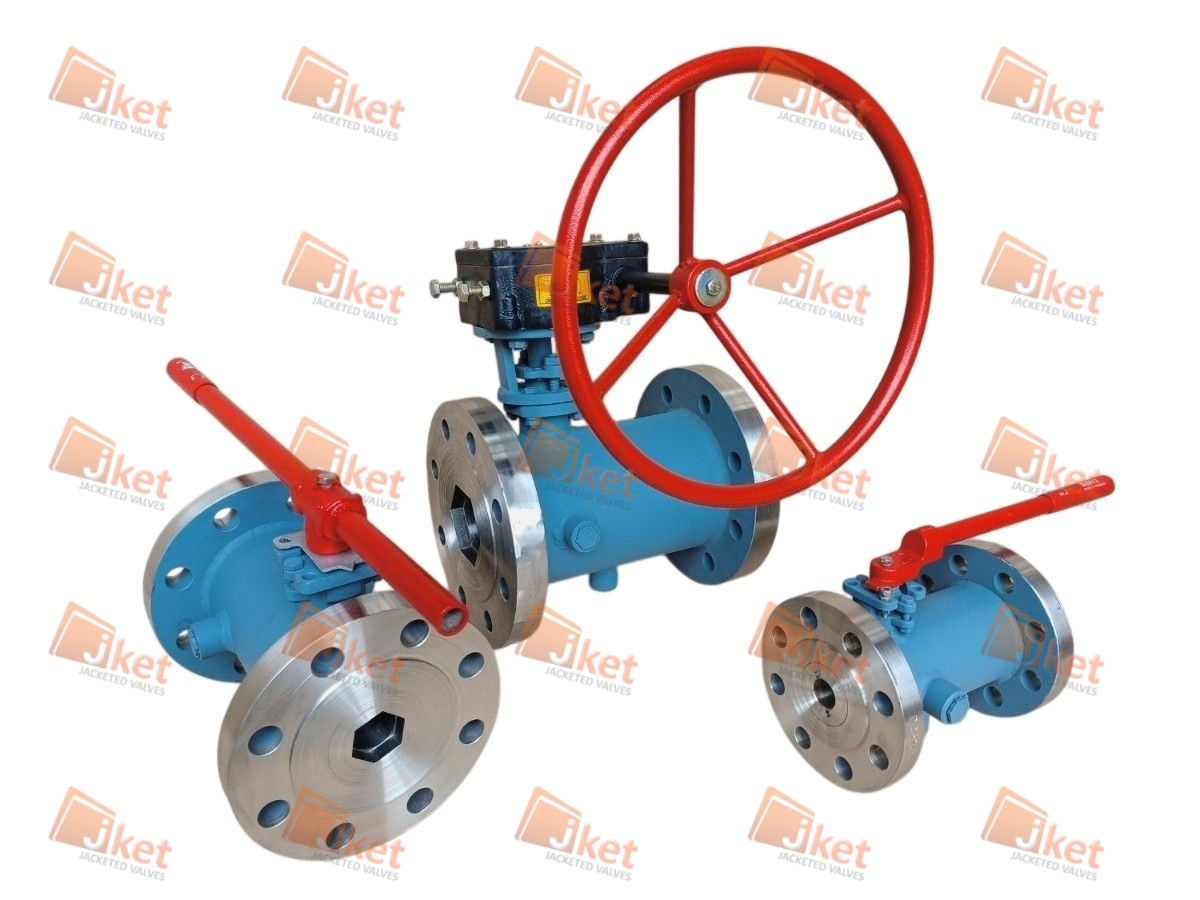

- Hand Lever / Gear / Pneumatic Operated
- Size Range DN15 (1/2") To DN300 (12") with Oversize Flanges
- Pressure Rating 150# / 300#

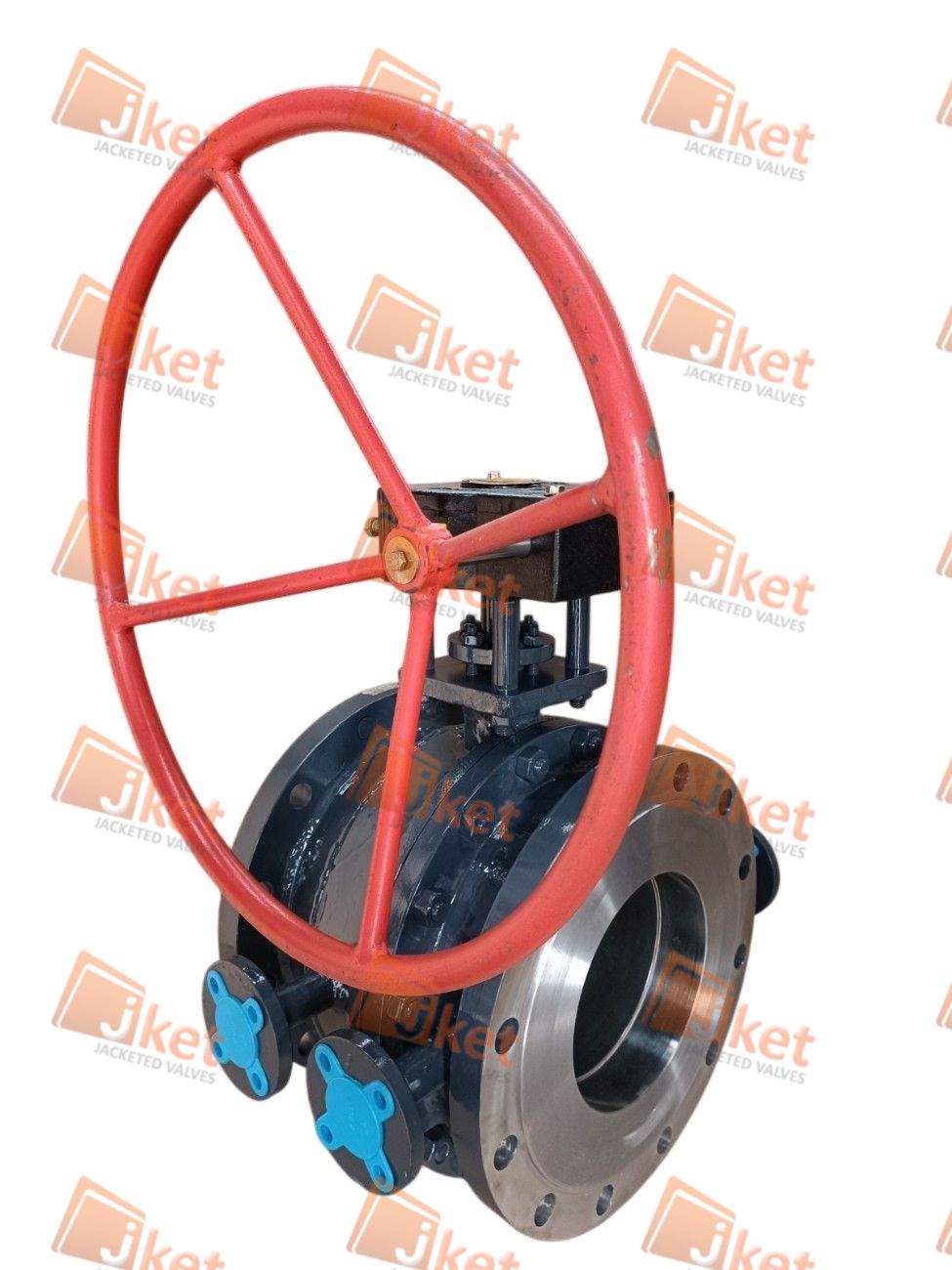

- Operation Hand Lever / Gear / Pneumatic Operated
- End Connection Flanged End To ANSI B 16.5 / BS 10 Table D-E-F-H / JIS / PN / DIN / IS Standard
Overview
Jket® brand Full Jacketed Ball Valves manufacturing and exports by us since 2011. Each full jacketed ball valves have oversize flanges to achieve proper bolting space at flange back size. Up to size 4"/DN100 between core size and jacket size have minimum one size different and in big size from 5"/DN125 flange sizes are more higher.
By default, each our Full Jacketed Ball Valve flange to flange distance provides oversize flange length as per ASME B 16.10 Standard. As example if valve size is 4" (DN100) x 6" (DN150), in that case valve length will be as per 6" (DN100), it means 266.7mm (10.5"). Benefit is, in emergency of jacketed valve replacement any non-jacketed valve temporary can fix.
Non-Standard length of Jacketed Ball Valve also can produce by us and deliver special order basis. All types of Full Jacketed Valves available with PTFE seats for lower temperature and for hight temperature with Metal To Metal Seats (Tungsten Carbide Coated and Stellite Coated).
Technical Specifications
Product standards, pressure ratings, end connections and jacket utility details structured for selection, approval and quotation workflows.
| Specification | Details |
|---|---|
| Design Standard | BS 5159 / ISO 7121 / BS 5351 / ISO 17292 / API 6D / API 608 / ISO 14313 / ASME B 16.34 / BS EN 12516 |
| Inspection & Testing Standard | API 598 / API 6D / BS EN 12266 - I / ISO 5208 |
| Fire Testing | API 607 / ISO 10497 / BS EN 12266-II |
| Face To Face | As Per ANSI B 16.10 |
| End Connection | Flanged End To ANSI B 16.5 / BS 10 Table D-E-F-H / JIS / PN / DIN / IS Standard |
| Size Range | DN15 (1/2") To DN300 (12") with Oversize Flanges |
| Jacket In/Out/Drain Connection | Flanged End, Screwed End, Socket Weld (1/2", 3/4", 1") |
| Pressure Rating | 150# / 300# |
| Operation | Hand Lever / Gear / Pneumatic Operated |
| Jacket Type | Full Jacketed |
| Primary Category | Full Jacketed Valves |
| Documentation | GAD, datasheet and quality documents available on request |

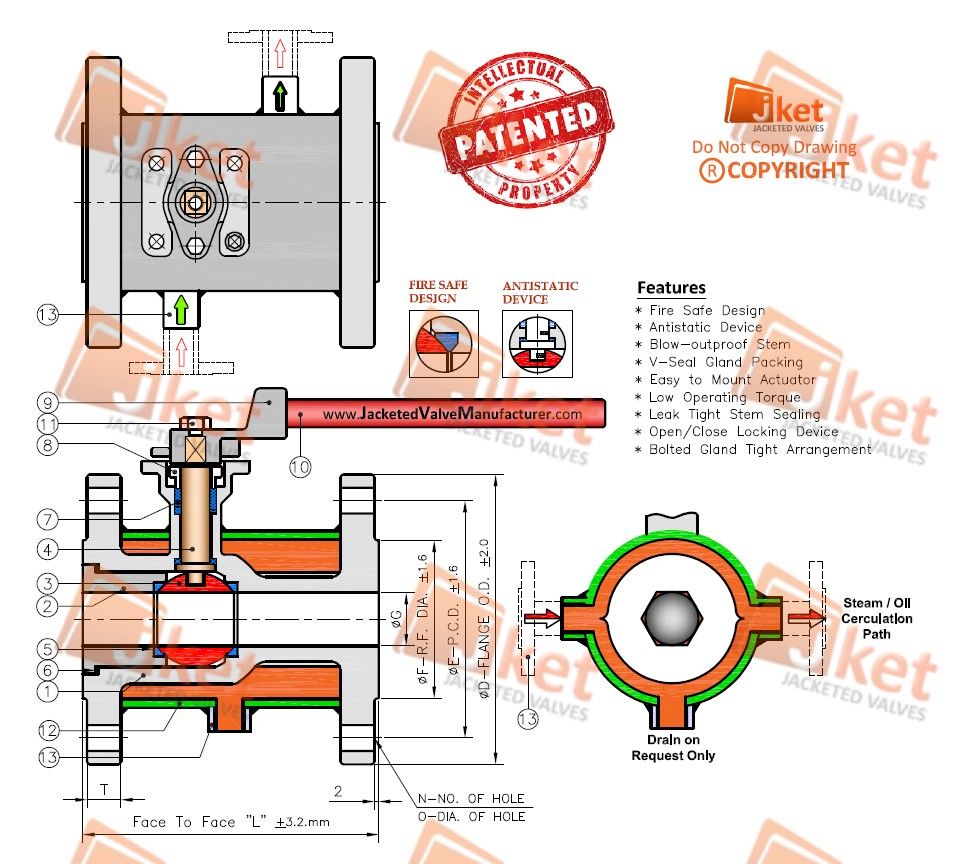

Product Drawing
Review the technical arrangement and principal construction details of the Full Jacketed Ball Valve.
Materials & Manufacturing Sizes
Review standard component materials and available valve and jacket dimensions for product selection, compatibility and project planning.
| No. | Items | Material | ||
|---|---|---|---|---|
| 1 | BODY | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 2 | INSERT (NUT) | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 3 | BALL (SOLID) | A 351 GR. CF8/CF8M (TCC & Stellite Coated on Order) | A 351 GR. CF8/CF8M (TCC & Stellite Coated on Order) | A 351 GR. CF3/CF3M (TCC & Stellite Coated on Order) |
| 4 | STEM | SS 316 | SS 304/SS 316 | SS 304L/SS 316L |
| 5 | BALL SEAT | PTFE/GFT/CFT/METAL | PTFE/GFT/CFT/METAL | PTFE/GFT/CFT/METAL |
| 6 | BODY SEAL | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite |
| 7 | GLAND PACKING | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite |
| 8 | GLAND FLANGE | A 351 GR. CF8M | A 351 GR. CF8M | A 351 GR. CF3M |
| 9 | HAND LEVER SOCKET | A 216 GR. WCB | A 216 GR. WCB | A 216 GR. WCB |
| 10 | HAND LEVER PIPE | MS | MS | MS |
| 11 | LEVER FITTING BOLT | SS 304 | SS 304 | SS 304 |
| 12 | JACKET | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 13 | JACKET CONNECTION FLANGE/COUPLING | A 351 GR. CF3/CF3M | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| MM | NB | DN | INCH |
|---|---|---|---|
| 15MM x 40MM | 15NB x 40NB | DN15 x DN40 | ½" X ¾" |
| 20MM x 40MM | 20NB x 40NB | DN20 x DN40 | ¾" X 1" |
| 25MM x 50MM | 25NB x 50NB | DN25 x DN50 | 1" X 1½" |
| 40MM x 65MM | 40NB x 65NB | DN40NB x DN65 | 1½" x 2½" |
| 40MM x 80MM | 40NB x 80NB | DN40NB x DN80 | 1½ x 3" |
| 50MM x 80MM | 50NB x 80NB | DN50NB x DN80 | 2" x 3" |
| 65MM x 100MM | 65NB x 100NB | DN65NB x DN100 | 2½" x 4" |
| 80MM x 100MM | 80NB x 100NB | DN80NB x DN100 | 3" x 4" |
| 100MM x 150MM | 100NB x 150NB | DN100NB x DN150 | 4" x 6" |
| 125MM x 200MM | 125NB x 200NB | DN125NB x DN200 | 5" x 8" |
| 150MM x 200MM | 150NB x 200NB | DN150NB x DN200 | 6" x 8" |
| 150MM x 250MM | 150NB x 250NB | DN150NB x DN250 | 6" x 10" |
Downloads for Full Jacketed Ball Valve
Download product-specific general arrangement drawings for dimensional review, project planning and technical approval.
