Half Jacketed Globe Valve
Jket® brand Partial / Half Jacketed Globe Valves manufacturing and exports by us since 2011, with CE/PED, ISO 9001/14001/45001 Certifications.
- Half Jacketed
- 150# / 300# / 600# / 800#
- Hand Wheel / Gear Operated
- Size Range 2" To 12" (DN50 To DN300)
- Pressure Rating 150# / 300# / 600# / 800#
- Operation Hand Wheel / Gear Operated
- End Connection Flanged End To ANSI B 16.5/BS 10 Table / JIS / PN / DIN / IS Standard / Screwed / Socket Weld End, Butt Weld End
Overview
Jket® brand Partial / Half Jacketed Globe Valves manufacturing and exports by us since 2011, with CE/PED, ISO 9001/14001/45001 Certifications. We take immense pride in serving over a thousand satisfied clients, with our manufacturing prowess extending its reach to more than thirty-six countries worldwide. Our comprehensive range of products continues to garner acclaim across borders, solidifying our commitment to excellence on a global scale.
Each Half-Jacketed Globe valves have same bore as well same flange size. We are manufacturing Rising Stem, Rising Hand Wheel, Bolted Bonnet Design, Half Jacketed Globe Valves size from DN 50/2" to DN300/12" with Flanged End, Screwed End (Threaded End), Socket Weld End and Butt Weld End.
Main advantage of half jacketed valves is no need to go with oversize modification and easy to replacement with any non-jacketed valves also.
Tailor made dimensions Jacketed Globe Valve also supply by us. All Jacketed Globe Valves by default come with Stellited Hard Face Seats to make the valve last longer and prevent leaks from the seats.
Technical Specifications
Product standards, pressure ratings, end connections and jacket utility details structured for selection, approval and quotation workflows.
| Specification | Details |
|---|---|
| Design Standard | BS 1873 |
| Inspection & Testing Standard | API 598 / ISO 5208 |
| Face To Face | As Per ANSI B 16.10 / Mfg. Std. |
| End Connection | Flanged End To ANSI B 16.5/BS 10 Table / JIS / PN / DIN / IS Standard / Screwed / Socket Weld End, Butt Weld End |
| Size Range | 2" To 12" (DN50 To DN300) |
| Jacket In/Out/Drain Connection | Flanged End, Screwed End, Socket Weld (1/2", 3/4", 1") |
| Pressure Rating | 150# / 300# / 600# / 800# |
| Operation | Hand Wheel / Gear Operated |
| Jacket Type | Half Jacketed |
| Primary Category | Half Jacketed Valves |
| Documentation | GAD, datasheet and quality documents available on request |

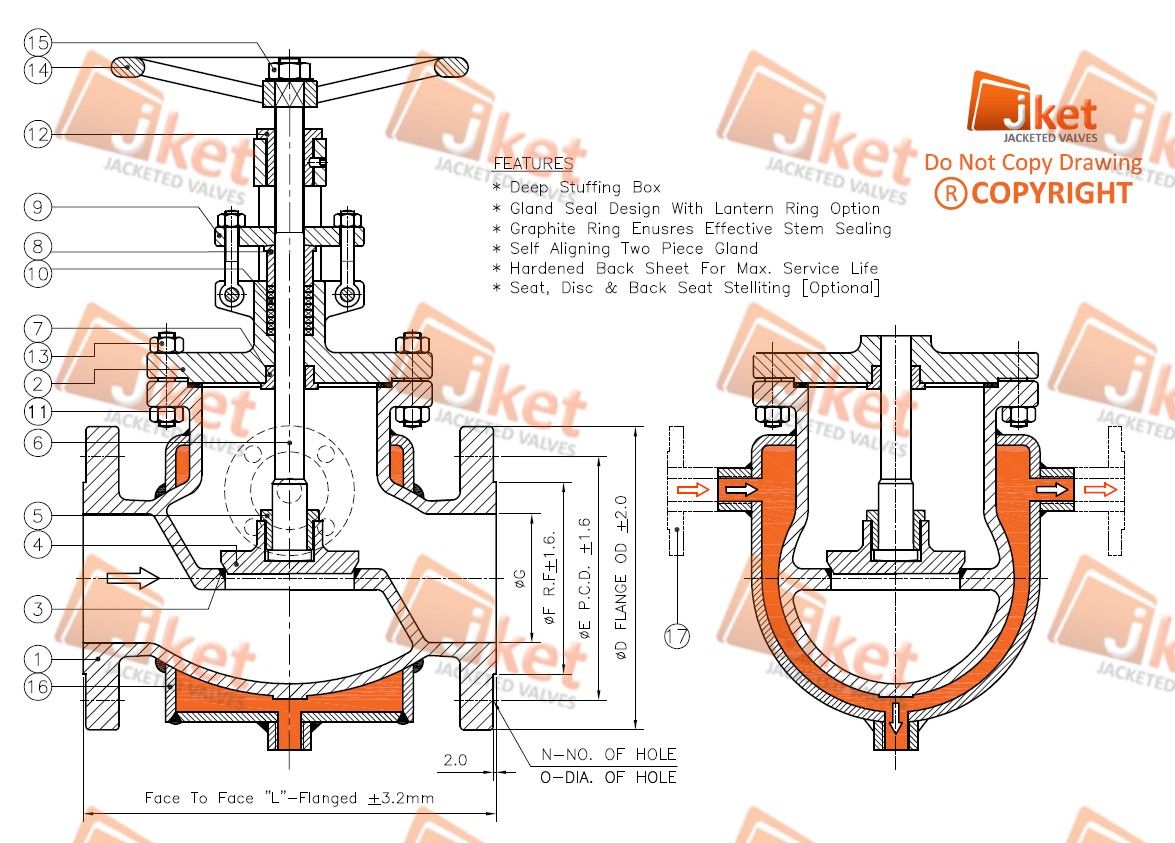

Product Drawing
Review the technical arrangement and principal construction details of the Half Jacketed Globe Valve.
Materials & Manufacturing Sizes
Review standard component materials and available valve and jacket dimensions for product selection, compatibility and project planning.
| No. | Items | Material | ||
|---|---|---|---|---|
| 1 | BODY | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 2 | BONNET | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 3 | SEAT | SS 410+Stellited HF | Integral with Body | Integral with Body |
| 4 | DISC (PLUG) | A 217 GR. CA15 | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 5 | DISC NUT (PLUG NUT) | SS 410 | SS 304/SS 316 | SS 304L/SS 316L |
| 6 | SPINDLE (STEM) | SS 410 | SS 304/SS 316 | SS 304L/SS 316L |
| 7 | BACK SEAT BUSH | SS 410 | Integral with Bonnet | Integral with Bonnet |
| 8 | GLAND BUSH | SS 410 | SS 304/SS 316 | SS 304L/SS 316L |
| 9 | GLAND FLANGE | A 105 | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 10 | GLAND PACKING RING | GRAPHITE (GRAFOIL) | GRAPHITE (GRAFOIL) | GRAPHITE (GRAFOIL) |
| 11 | GASKET | SP. WOUND+GRAPHITE | SP. WOUND+GRAPHITE | SP. WOUND+GRAPHITE |
| 12 | SPINDLE NUT | SG IRON | SG IRON | SG IRON |
| 13 | BONNET STUD AND NUT | A 193 GR. B7/A 194 GR 2H | A 193 GR. B8/A 194 GR 8 | A 193 GR. B8M/A 194 GR 8M |
| 14 | HAND WHEEL | SG IRON | SG IRON | SG IRON |
| 15 | HAND WHEEL NUT | CS | CS | CS |
| 16 | JACKET (FABRICATED) | A 216 GR. WCB | A 216 GR. WCB | A 216 GR. WCB |
| 17 | JACKET COUPLING/FLANGE | A 105 | A 105 | A 105 |
| MM | NB | DN | INCH |
|---|---|---|---|
| 50MM | 50NB | DN50 | 2" |
| 65MM | 65NB | DN65 | 2-1/2" |
| 80MM | 80NB | DN80 | 3" |
| 100MM | 100NB | DN100 | 4" |
| 125MM | 125NB | DN125 | 5" |
| 150MM | 150NB | DN150 | 6" |
| 200MM | 200NB | DN200 | 8" |
| 250MM | 250NB | DN250 | 10" |
| 300MM | 300NB | DN300 | 12" |
