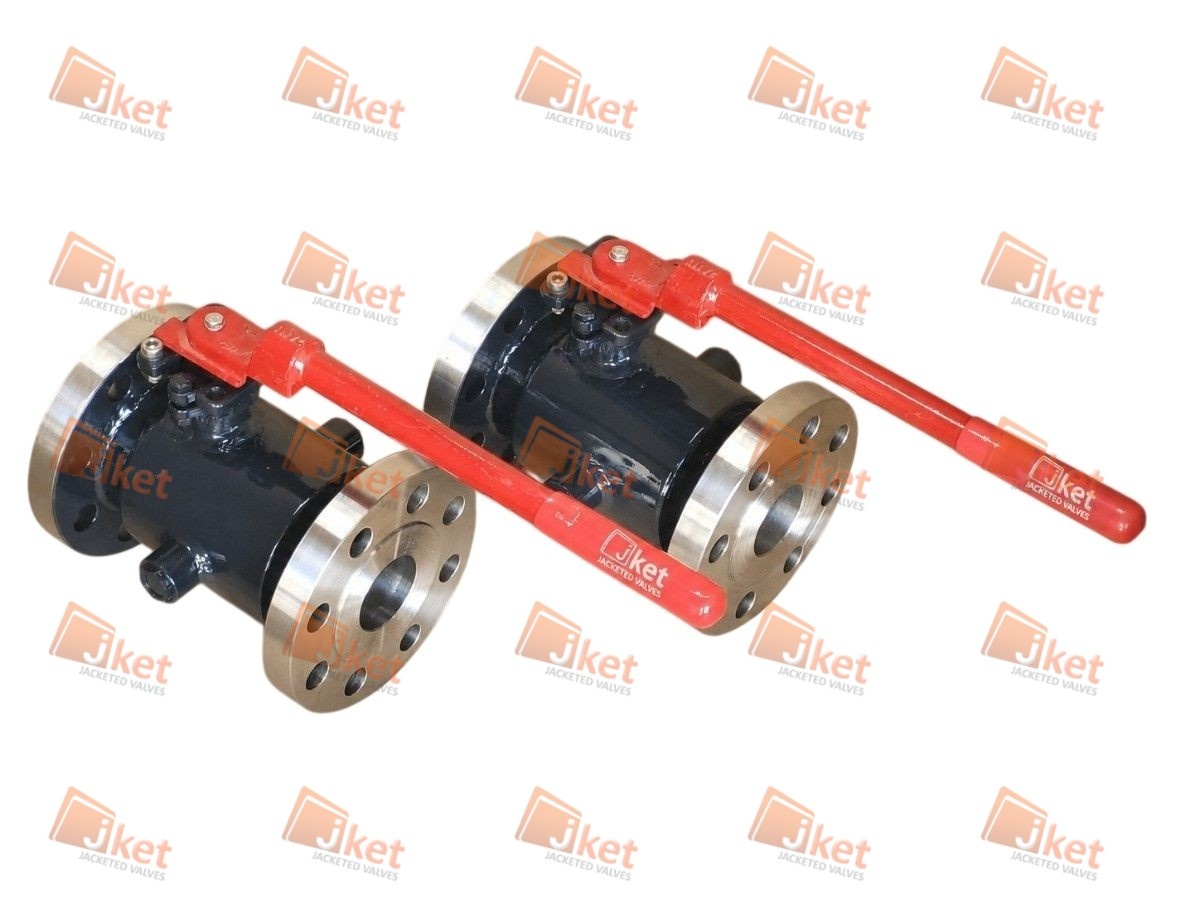

Half Jacketed Ball Valve
Jket® brand Partial / Half Jacketed Ball Valves manufacturing and exports by us since 2011.
- Half Jacketed
- 150# / 300#
- Hand Lever / Gear / Pneumatic Operated
- Size Range DN25 (1") To DN100 (4")
- Pressure Rating 150# / 300#
- Operation Hand Lever / Gear / Pneumatic Operated
- End Connection Flanged End To ANSI B 16.5 / BS 10 Table D-E-F-H / JIS / PN / DIN / IS Standard
Overview
Jket® brand Partial / Half Jacketed Ball Valves manufacturing and exports by us since 2011. Each Half Jacketed ball valves have same bore as well same flange size. Half Jacketed Ball Valve manufacturing by us from DN 25/1" to DN100/4" Size.
Main advantage of half jacketed valves is no need to go with oversize modification and easy to replacement with any non-jacketed valves also.
Non-Standard length of Half Jacketed Ball Valve also manufacturing by us. All types of Partial Jacketed Ball Valve available with PTFE seats for lower temperature and for hight temperature with Metal To Metal Seats (Tungsten Carbide Coated and Stellite Coated).
Technical Specifications
Product standards, pressure ratings, end connections and jacket utility details structured for selection, approval and quotation workflows.
| Specification | Details |
|---|---|
| Design Standard | BS 5159 / ISO 7121 / BS 5351 / ISO 17292 / API 6D / API 608 / ISO 14313 / ASME B 16.34 / BS EN 12516 |
| Inspection & Testing Standard | API 598 / API 6D / BS EN 12266 - I / ISO 5208 |
| Fire Testing | API 607 / ISO 10497 / BS EN 12266-II |
| Face To Face | As Per ANSI B 16.10 |
| End Connection | Flanged End To ANSI B 16.5 / BS 10 Table D-E-F-H / JIS / PN / DIN / IS Standard |
| Size Range | DN25 (1") To DN100 (4") |
| Jacket In/Out/Drain Connection | Flanged End, Screwed End, Socket Weld (1/2", 3/4", 1") |
| Pressure Rating | 150# / 300# |
| Operation | Hand Lever / Gear / Pneumatic Operated |
| Jacket Type | Half Jacketed |
| Primary Category | Half Jacketed Valves |
| Documentation | GAD, datasheet and quality documents available on request |

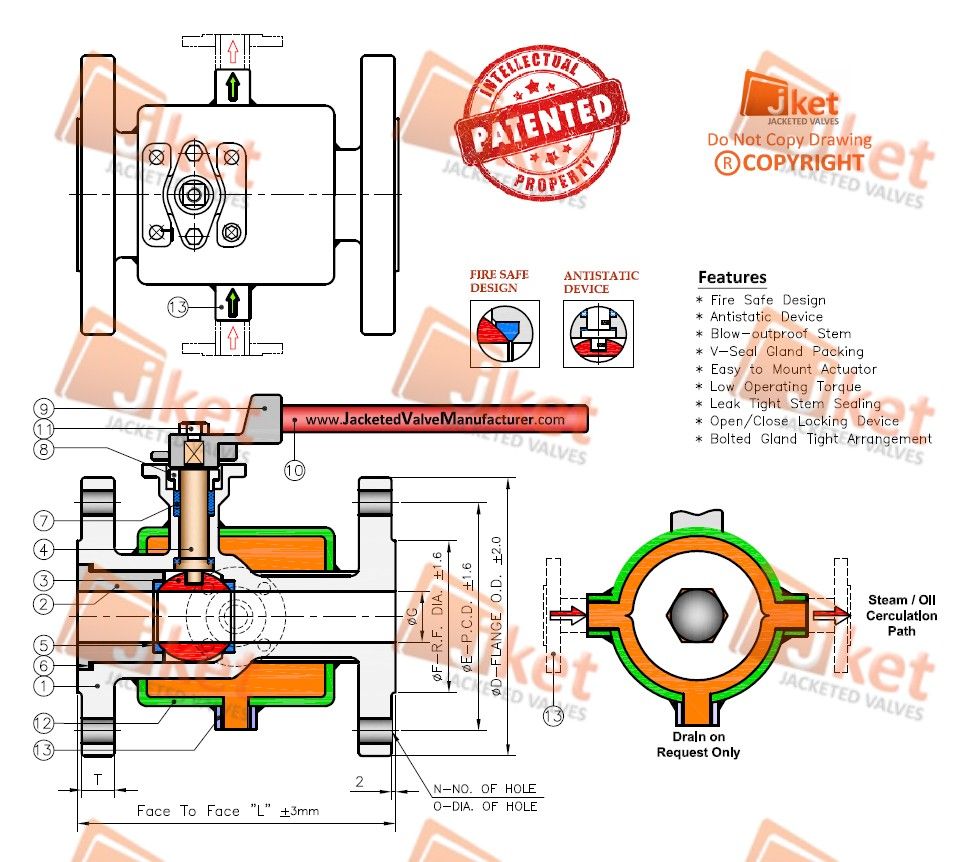

Product Drawing
Review the technical arrangement and principal construction details of the Half Jacketed Ball Valve.
Materials & Manufacturing Sizes
Review standard component materials and available valve and jacket dimensions for product selection, compatibility and project planning.
| No. | Items | Material | ||
|---|---|---|---|---|
| 1 | BODY | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 2 | INSERT (NUT) | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 3 | BALL (SOLID) | A 351 GR. CF8/CF8M (TCC & Stellite Coated on Order) | A 351 GR. CF8/CF8M (TCC & Stellite Coated on Order) | A 351 GR. CF3/CF3M (TCC & Stellite Coated on Order) |
| 4 | STEM | SS 316 | SS 304/SS 316 | SS 304L/SS 316L |
| 5 | BALL SEAT | PTFE/GFT/CFT/METAL | PTFE/GFT/CFT/METAL | PTFE/GFT/CFT/METAL |
| 6 | BODY SEAL | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite |
| 7 | GLAND PACKING | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite | PTFE/GFT/CFT/Graphite |
| 8 | GLAND FLANGE | A 351 GR. CF8M | A 351 GR. CF8M | A 351 GR. CF3M |
| 9 | HAND LEVER SOCKET | A 216 GR. WCB | A 216 GR. WCB | A 216 GR. WCB |
| 10 | HAND LEVER PIPE | MS | MS | MS |
| 11 | LEVER FITTING BOLT | SS 304 | SS 304 | SS 304 |
| 12 | JACKET | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 13 | JACKET CONNECTION FLANGE/COUPLING | A 351 GR. CF3/CF3M | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| MM | NB | DN | INCH |
|---|---|---|---|
| 25MM | 25NB | DN25 | 1" |
| 40MM | 40NB | DN40 | 1-1/2" |
| 50MM | 50NB | DN50 | 2" |
| 65MM | 65NB | DN65 | 2-1/2" |
| 80MM | 80NB | DN80 | 3" |
| 100MM | 100NB | DN100 | 4" |
