Half Jacketed Y Type Strainer

Jket® brand Partial / Half Jacketed Y Type Strainer manufacturing and exports by Exclusive Jacketed Valve Manufacturing company since 2011, with CE/PED, ISO 9001/14001/45001 Certifications. Various type of heating media can be used for Half Jacketed Y Strainer as Hot Water, Hot oil, Thermal oil, Therminol, Thermic Fluid Oil, Dowtherm Oil, Steam etc as per process requirement to convert media in liquid form.

Half Jacketed
150# / 300# / 600#

Request Quote View Specification

Size Range DN25 (1") to DN300 (12")
Pressure Rating 150# / 300# / 600#
Jacket In/Out/Drain Connection Flanged End, RF
End Connection Flanged End to ANSI B 16.5 / BS 10 Table D-E-F-H / JIS / PN / DIN / IS Standard

Overview

Each Partial Jacketed Y Strainer has same bore as well same flange size, not any oversize flanges. Each Jacketed Y Strainer has bolted cover arrangement with drain plug. Precisely designed each jacketed strainer have Low Pressure Drop, Less Pressure Loss, Easy to clean with net filtration free opening area minimum by 3 times (300%) against inlet pipe cross sectional area.

Main benefit of half jacketed y type strainer is no need to go with oversize modification and easy to replacement with any non-jacketed strainer if flange to flange distance are same.

Tailor made dimensions and filtration opening area requirement can manufacturer heating jacketed strainer. All types of Partial Half Jacketed Strainer available with various size of Filter Wire Mesh on order basis. Filter fine wire mesh available from 5 Micron to 5000 Micron Hole size. Perforated hole sheet diameter 0.5mm to 10.0mm available in thickness of 0.5mm to 3.0mmseats.

Advantage of Jacketed Y Strainer is to extend service life of pump on preventing of foreign particle and also provide clear process media to system application.

Technical Specifications

Product standards, pressure ratings, end connections and jacket utility details structured for selection, approval and quotation workflows.

Specification	Details
Design Standard	ASME B 16.34 / BS EN 12516
Inspection & Testing Standard	API 598 / API 6D / BS EN 12266 - I / ISO 5208
Face To Face	As Per BS EN 558
End Connection	Flanged End to ANSI B 16.5 / BS 10 Table D-E-F-H / JIS / PN / DIN / IS Standard
Size Range	DN25 (1") to DN300 (12")
Jacket In/Out/Drain Connection	Flanged End, RF
Pressure Rating	150# / 300# / 600#
Jacket Type	Half Jacketed
Primary Category	Half Jacketed Valves
Documentation	GAD, datasheet and quality documents available on request

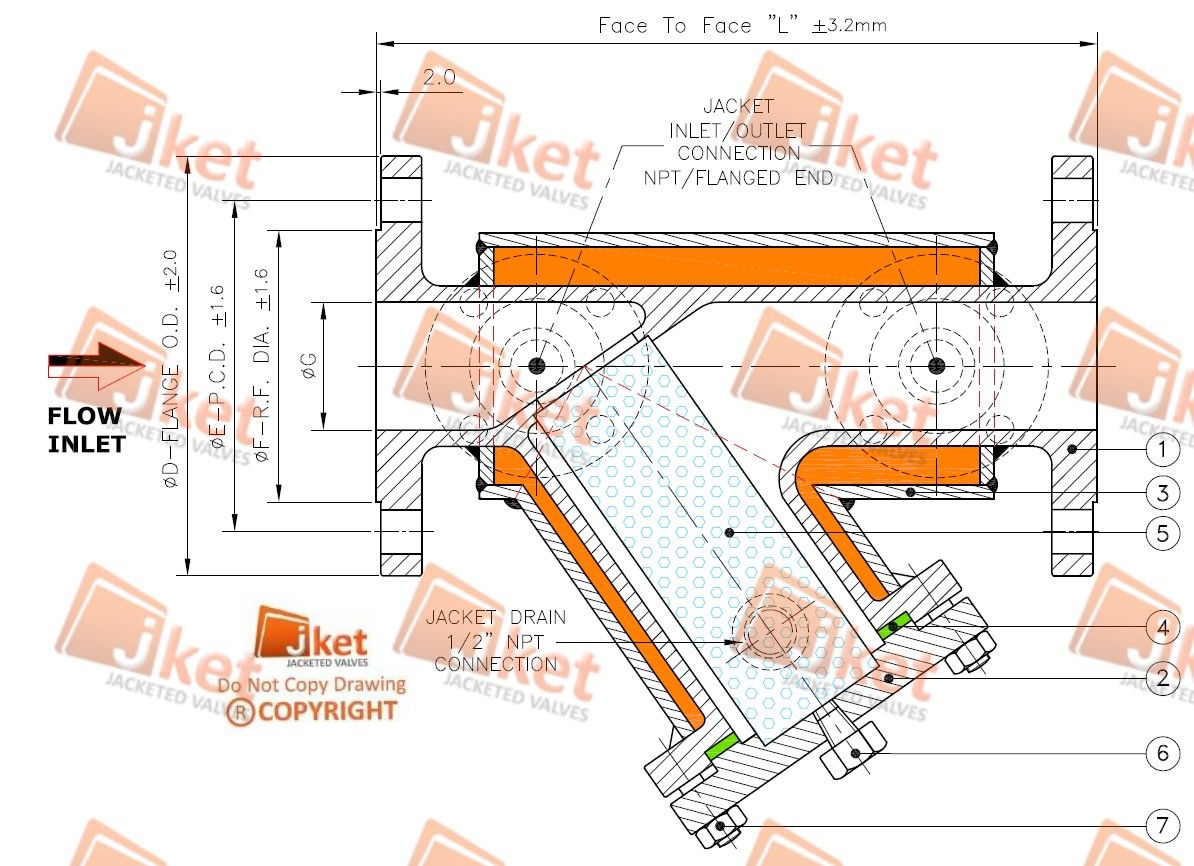

Product Drawing

Review the technical arrangement and principal construction details of the Half Jacketed Y Type Strainer.

Materials & Manufacturing Sizes

Review standard component materials and available valve and jacket dimensions for product selection, compatibility and project planning.

Standard Scope of Supply
No.	Items	Material
1	BODY	A 216 GR. WCB	A 351 GR. CF8/CF8M	A 351 GR. CF3/CF3M
2	COVER	A 216 GR. WCB	A 351 GR. CF8/CF8M	A 351 GR. CF3/CF3M
3	JACKET	CS Pipe Fabricated	SS 304 Pipe Fabricated	SS 304 Pipe Fabricated
4	GASKET	PTFE/SP. WOUND GFT	PTFE/SP. WOUND GFT	PTFE/SP. WOUND GFT
5	FILTER ELEMENT	SS 304/SS 316	SS 304/SS 316	SS 304L/SS 316L
6	DRAIN PLUG	A 105	SS 304/SS 316	SS 304L/SS 316L
7	FASTENERS	B7/2H	B8/8 or B8M/8M	8 or B8M/8M

Manufacturing Size Range
MM	NB	DN	INCH
50MM	50NB	DN50	2"
65MM	65NB	DN65	2-1/2"
80MM	80NB	DN80	3"
100MM	100NB	DN100	4"
125MM	125NB	DN125	5"
150MM	150NB	DN150	6"
200MM	200NB	DN200	8"
250MM	250NB	DN250	10"
300MM	300NB	DN300	12"
350MM	350NB	DN350	14"
400MM	400NB	DN400	16"
450MM	450NB	DN450	18"
500MM	500NB	DN500	20"
600MM	600NB	DN600	24"
