Full Jacketed Swing Check Valve
Jket® brand Full Jacketed Swing Type Check Valve (Non-Return Valve/NRV) manufacturing and exports by us since 2011, with CE/PED, ISO 9001/14001/45001 Certifications.
- Full Jacketed
- 150# / 300# / 600#
- Self-Actuating
- Size Range 2" To 12" (DN50 To DN300)
- Pressure Rating 150# / 300# / 600#
- Operation Self-Actuating
- End Connection Flanged End To ANSI B 16.5/BS 10 Table / JIS / PN / DIN / IS Standard / Screwed / Socket Weld End, Butt Weld End
Overview
Jket® brand Full Jacketed Swing Type Check Valve (Non-Return Valve/NRV) manufacturing and exports by us since 2011, with CE/PED, ISO 9001/14001/45001 Certifications. With over a quarter-century of expertise, we seamlessly integrate advanced technology, elevate quality standards, and excel in the design and development of jacketed check valves.
All Full Jacketed Swing Type Non-Return Valves have oversize flanges to achieve proper bolting space at flange back size. In the design, there is a minimum one-size difference between the core and jacket dimensions.
By default, each our Full Jacketed Swing Check Valve flange to flange distance provides oversize flange length as per ASME B 16.10 Standard. As example if valve size is 2" (DN50) x 3" (DN80), in that case valve length will be as per 3" (DN80), it means 241.3mm (9.5"). The advantage is that in case of an emergency requiring replacement of a jacketed valve, a non-jacketed valve can temporarily serve as a substitute.
Tailor made dimensions Jacketed Check Valve also supply by us. All Full Jacketed Swing Check Valves by default come with Stellited Hard Face Seats to make the valve last longer and prevent leaks from the seats.
Technical Specifications
Product standards, pressure ratings, end connections and jacket utility details structured for selection, approval and quotation workflows.
| Specification | Details |
|---|---|
| Design Standard | API 6D / BS 1838 |
| Inspection & Testing Standard | API 598 / ISO 5208 |
| Face To Face | As Per ANSI B 16.10 / Mfg. Std. |
| End Connection | Flanged End To ANSI B 16.5/BS 10 Table / JIS / PN / DIN / IS Standard / Screwed / Socket Weld End, Butt Weld End |
| Size Range | 2" To 12" (DN50 To DN300) |
| Jacket In/Out/Drain Connection | Flanged End, Screwed End, Socket Weld (1/2", 3/4", 1") |
| Pressure Rating | 150# / 300# / 600# |
| Operation | Self-Actuating |
| Jacket Type | Full Jacketed |
| Primary Category | Full Jacketed Valves |
| Documentation | GAD, datasheet and quality documents available on request |

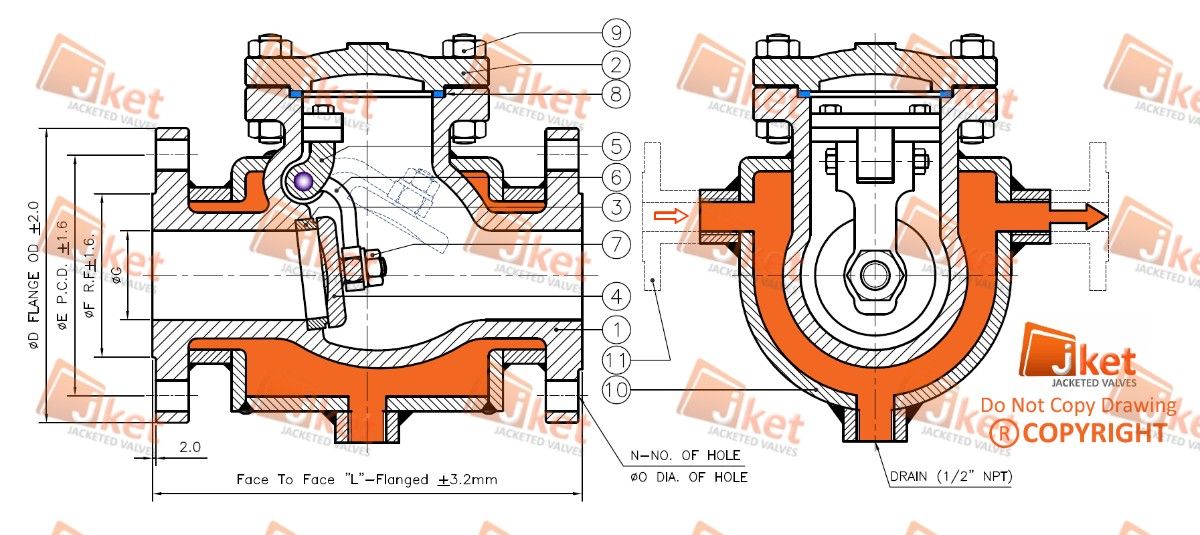

Product Drawing
Review the technical arrangement and principal construction details of the Full Jacketed Swing Check Valve.
Materials & Manufacturing Sizes
Review standard component materials and available valve and jacket dimensions for product selection, compatibility and project planning.
| No. | Items | Material | ||
|---|---|---|---|---|
| 1 | BODY | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 2 | COVER | A 216 GR. WCB | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 3 | SEAT | SS 410+Stellited HF | Integral with Body | Integral with Body |
| 4 | DISC (PLUG) | A 216 GR. WCB+13% CR. FACE | A 351 GR. CF8/CF8M | A 351 GR. CF3/CF3M |
| 5 | HINGE BRACKET | A 216 GR. WCB | A 351 GR. CF8/CF8M | 351 GR. CF3/CF3M |
| 6 | HNGE LEVER | A 216 GR. WCB | A 351 GR. CF8/CF8M | 351 GR. CF3/CF3M |
| 7 | DISC LOCK NUT | SS 304 | SS 316 | SS 316 |
| 8 | GASKET | SP. WOUND+GRAPHITE | SP. WOUND+GRAPHITE | SP. WOUND+GRAPHITE |
| 9 | BONNET STUD AND NUT | A 193 GR. B7/A 194 GR 2H | A 193 GR. B8/A 194 GR 8 | A 193 GR. B8M/A 194 GR 8M |
| 10 | JACKET (FABRICATED) | A 516 GR. 70/IS 2062 | A 516 GR. 70/IS 2062 | A 516 GR. 70/IS 2062 |
| 11 | JACKET COUPLING/FLANGE | A 105 | A 105 | A 105 |
| MM | NB | DN | INCH |
|---|---|---|---|
| 50MM x 80MM | 50NB x 80NB | DN50 x DN80 | 2" x 3" |
| 65MM x 100MM | 65NB x 100NB | DN65 x DN100 | 2½" x 4" |
| 80MM x 100MM | 80NB x 100NB | DN80 x DN100 | 3" x 4" |
| 100MM x 150MM | 100NB x 150NB | DN100 x DN150 | 4" x 6" |
| 125MM x 200MM | 125NB x 200NB | DN125 x DN200 | 5" x 8" |
| 150MM x 200MM | 150NB x 200NB | DN150 x DN200 | 6" x 8" |
| 200MM x 250MM | 200NB x 250NB | DN200 x DN250 | 8" x 10" |
| 250MM x 300MM | 250MM x 300MM | DN250 x DN300 | 10" x 12" |
| 300MM x 350MM | 300MM X 350MM | DN300 x DN350 | 12" x 14" |
Downloads for Full Jacketed Swing Check Valve
Download product-specific general arrangement drawings for dimensional review, project planning and technical approval.
Applications
One stop solution for a complete range of Full Jacketed Swing Check Valve Manufacturer, Supplier, Stockist, Importer
- Molten Sulfur Full Jacketed Swing Check Valve
- Full Jacketed Swing Check Valve for Bitumen
- Full Jacketed Swing Check Valve for Asphalt
- Sulphur service Full Jacketed Swing Check Valve
- Bolted Cover Full Jacketed Swing Check Valve
- Zero Leakage Full Jacketed Swing Check Valve
- Metal Seated Full Jacketed Swing Check Valve
- High Pressure Full Jacketed Swing Check Valve
- High Temperature Full Jacketed Swing Check Valve
- Naphthalene Service Full Jacketed Swing Check Valve
- Full Jacketed Swing Check Valve for Polymer
- Oligomer Service Full Jacketed Swing Check Valve
- Full Jacketed Swing Check Valve with Steam Jacket
- Full Jacketed Swing Check Valve with Heating Oil Jacket
- Coal tar Application Full Jacketed Swing Check Valve
- Molten Sulfur Full Jacketed NRV
- Full Jacketed NRV for Bitumen
- Full Jacketed NRV for Asfalt
- Sulphur service Full Jacketed NRV
- Bolted Cover Full Jacketed NRV
- Zero Leakage Full Jacketed NRV
- Metal Seated Full Jacketed NRV
- High Pressure Full Jacketed NRV
- High Temperature Full Jacketed NRV
- Naphthalene Service Full Jacketed NRV
- Full Jacketed NRV for Polymer
- Oligomer Service Full Jacketed NRV
- Full Jacketed NRV with Steam Jacket
- Full Jacketed NRV with Heating Oil Jacket
- Coal tar Application Full Jacketed NRV
- Molten Sulfur Full Jacketed Non-Return Valve
- Full Jacketed Non-Return Valve for Bitumen
- Full Jacketed Non-Return Valve for Asphalt
- Sulphur service Full Jacketed Non-Return Valve
- Bolted Cover Full Jacketed Non-Return Valve
- Zero Leakage Full Jacketed Non-Return Valve
- Metal Seated Full Jacketed Non-Return Valve
- High Pressure Full Jacketed Non-Return Valve
- High Temperature Full Jacketed Non-Return Valve
- Naphthalene Service Full Jacketed Non-Return Valve
- Full Jacketed Non-Return Valve for Polymer
- Oligomer Service Full Jacketed Non-Return Valve
- Full Jacketed Non-Return Valve with Steam Jacket
- Full Jacketed Non-Return Valve with Heating Oil Jacket
- Coal tar Application Full Jacketed Non-Return Valve
